Type OM

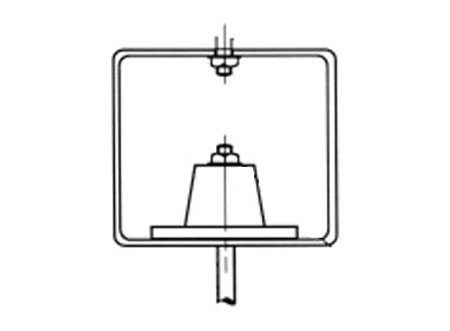

Type NH neoprene hangers comprise a rubber‐in‐shear mount located in a steel housing. The mount is moulded from high grade synthetic rubber with added anti‐ozone and anti‐oxidant agents.
A threaded insert is embedded in the top of the rubber. A load plate (suffix ʻLʼ) may be fitted into the steel housing to hold the suspended load to a fixed position during installation.
Slide table to view more
Dimensional Data mm | Weight Range Kg | Nom Defl mm |
|||||
---|---|---|---|---|---|---|---|
Mount Type | A | B | C | D | E | ||
NH/1 | 80 | 70 | 70 | 8 | 12 | 9‐72 | 4 |
NH/2 | 100 | 90 | 90 | 12 | 14 | 18‐360 | 5 |
NH/3 | 80 | 70 | 70 | 8 | 12 | 9‐72 | 9 |
NH/4 | 100 | 90 | 90 | 12 | 14 | 18‐360 | 10 |
