Restrained Spring Mounts with Internal Levelling

Type RMI

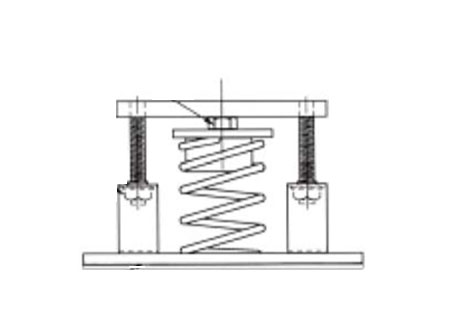

Type RMI are free standing restrained mounts with internal levelling. The springs are positioned between a steel bottom load plate, bonded to a neoprene stop pad, and a steel top load plate. The spring is held in with two drilled and tapped steel restraints.

The supported equipment is positioned on the top load plate. Mounting holes can be predrilled in the top plate if requested. The mounts may be fixed down utilising the pre‐drilled holes in the base plate. Alternatively, the neoprene pad will act as a friction pad

Slide table to view more

    Dimensional
Data
mm
   Load Range
Kg
Nom Defl
mm
TypeABCDEFG
RMI/1A/25165190230901414511‐50025
RMI/1/25190220250901419597‐109125
RMI/2/253303704101307014205193‐218225
RMI/1/50190220250901423050‐200050
RMI/1/752102402801301426050‐200075
RMI/1/10033035840820014425100‐3000100
